GMV-ND028TC | GMV-ND036TC | GMV-ND045TC | GMV-ND056TC | GMV-ND071TC | GMV-ND090TC | GMV-ND112TC | GMV-ND140TC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kühlung (W) | 2800 | 3600 | 4500 | 5600 | 7100 | 9000 | 11200 | 14000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regelbereich Kühlung (W) | 600-3100 | 800-4000 | 1000-4800 | 1300-6000 | 1800-7600 | 1900-9800 | 2000-12000 | 2000-14900 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heizung (W) | 3200 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regelbereich Heizung (W) | 600-3500 | 800-4400 | 1000-5400 | 1300-6700 | 1800-8500 | 1900-10800 | 2000-13200 | 2000-16500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Umluft (m3/h) | 800-600 | 850-600 | 850-600 | 950-750 | 1150-850 | 1250-900 | 1650-1100 | 1700-1200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Schalldruckpegel | 28-33 | 28-33 | 28-34 | 30-37 | 31-37 | 34-39 | 34-39 | 39-43 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Betriebsspannung | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stromaufnahme (A) | 0.2 | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.6 | 0.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Kältemittelart | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rohrleitung (Zoll / mm) | 1/4 - 6.35 | 1/4 - 6.35 | 1/4 - 6.35 | 3/8 - 9.53 | 3/8 - 9.53 | 3/8 - 9.53 | 3/8 - 9.53 | 3/8 - 9.53 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anschluss (mm) | 3/8 - 9.53 | 1/2 - 12.70 | 1/2 - 12.70 | 5/8 - 15.88 | 5/8 - 15.88 | 5/8 - 15.88 | 5/8 - 15.88 | 5/8 - 15.88 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Masse H-B-T | 240-840-840 | 240-840-840 | 240-840-840 | 240-840-840 | 240-840-840 | 240-840-840 | 240-840-840 | 240-840-840 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gewicht (kg) | 33 | 33 | 33 | 34 | 34 | 35 | 39 | 39 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jetzt anfragen
|
Jetzt anfragen
|
Jetzt anfragen
|
Jetzt anfragen
|
Jetzt anfragen
|
Jetzt anfragen
|
Jetzt anfragen
|
Jetzt anfragen
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Download | Download | Download | Download | Download | Download | Download | Download |

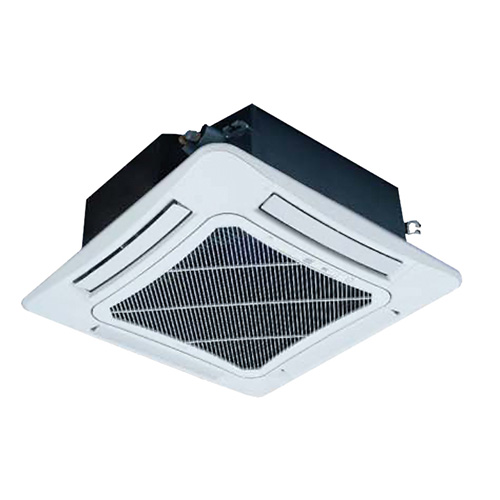

GMV-NDxxxTC
- 360° Ausblasgitter
- Geringe Einbauhöhen
- Gittermaß: 950 x 950 x 65 mm
- Motorisierter Luftausblas
- Integrierte Einspritzung
- Regenerierbare Luftfilter
- Frischluftanschluss
- Fensterkontakt für eine externe Abschaltung optional
- Integrierte Kondensatpumpe mit 1000 mm Förderhöhe
- Automatische Wieder-Einschaltung nach Stromausfall
- Hocheffizienter EC-Motor
- Farbe Signalweiß matt, annähernd RAL 9003
- Blue-Fin-Beschichtung
